Dranetz – HDPQ Xplorer SP – (Rated IP65) Transients to 1us, 4 transient triggers

Simply the best power quality monitor available – Don’t miss an event!

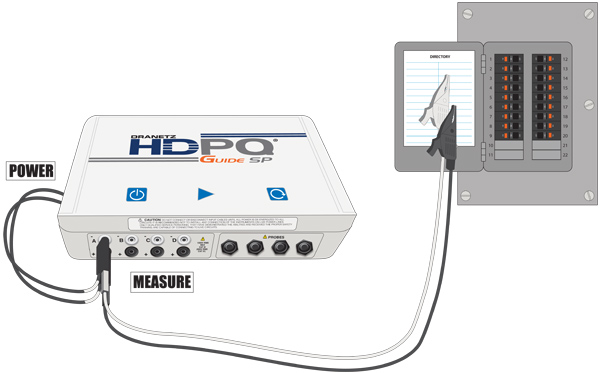

New – Power from the Phase Feature; Power the Instrument from the Circuit Being Measured, or Another Source (SP Only)

The  Dranetz HDPQ Xplorer SP (IP65) power quality analyzers represent the top of the line in the Dranetz HDPQ family of products and offers you simply the best PQ monitoring available from Dranetz, or any other manufacturer! The Dranetz HDPQ Xplorer family includes all of the features of the Dranetz HDPQ Visa and Guide power quality instruments, but also adds high speed transient capture capabilities, so you’ll never miss an event!

The Dranetz HDPQ Xplorer SP has the same measurement and communications capabilities as the Dranetz HDPQ Xplorer, but is housed in an IP65 enclosure without an LCD display, and can also be powered by the circuit being measured. The IP65 enclosure of the Dranetz HDPQ Xplorer SP greatly expands the applications of the Dranetz HDPQ Xplorer into outdoor and harsh environments, along with other applications where an LCD display is undesirable.

The Dranetz HDPQ Xplorer family of power quality instruments offers you the best in class monitoring capabilities available. It measures to all current industry standards, including IEC 61000-4-30 Class A, IEC 61000-4-7, IEEE 1159, IEEE 519, IEEE 1459, and more. With its high speed transient data capture (1 microsecond/channel) capabilities, this 8-channel workhorse simultaneously captures and characterizes thousands of parameters, by using a range of standard and customizable operating modes. The unique measurement capabilities include capture of low-medium-high frequency transients through peak, waveshape, rms duration and adaptive high-speed sampling, as well as power measurements to clearly characterize harmonics, non-sinusoidal, and unbalanced systems. The Intelligent AnswerModule® feature provides consultant-like analysis of sag directivity, capacitor switching transient identification/directivity and motor analysis/reporting.

The Dranetz HDPQ Xplorer family enables users to review data and change settings remotely from virtually any smartphone, tablet and mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the ‘safe’ environment, and use either the VNC interface along with our Dran-View 7 software or our Dranetz HDPQ Apple or Android Apps via Ethernet for remote control from anywhere with connectivity to the instrument.

Dranetz HDPQ Xplorer Family – Precision

• High Definition PQ & Energy Monitoring – 1000Vrms, AC/DC, 512 samples/cycle
• High Speed Digitized Transients – 1us, 10 to 2000Vpk
• Eight channels, 4 voltage & 4 current
• AnswerModules – Sag directivity, PF capacitor identification, motor – automatic event categorization
• Advanced PQ – IEC 61000-4-30 Class A & IEEE 1159 compliant
• Harmonics – IEC 61000-4-7, IEEE 519 (2014)
• Transient capabilities – V & I – waveshape triggers, high speed. Well beyond standards requirements
• IEEE 1459 Advanced Power Measurements
• 10,000 cycle pre/post trigger buffer
• EN 50160 Ed 3

Dranetz HDPQ Xplorer Family – Communications

• Ethernet, Wi-Fi, USB, Bluetooth
• VNC for full remote control from Dran-View 7 or a 3rd party App
• Apple & Android apps with real time metering and alarm Dashboard

Dranetz HDPQ Xplorer Family – Safe & Rugged

• Arc Flash Safety
• UL/cUL listed and CE approved
• IP65 enclosure for harsh and outdoor environments
• Automatic circuit detection and feedback on proper connection of the instrument User Interface

Dranetz HDPQ Xplorer Family – User Interface

• Automatic setups – PQ, Demand and Energy
• Tablet-like GUI that is icon driven, has taskbar shortcuts, and a Dashboard (only available remotely)

Dranetz HDPQ Xplorer Family – Productivity

• Mini-report – Screen snapshots, XML file. Easily uploaded and emailed!
• PQ & energy Dashboard’s for real time alarming
• AnswerModules – automatic event categorization
• Dran-View 7 power quality analysis software
• Rescue kit – Part of Dran-View 7. Correct problems with wiring, CT orientation, time errors and more
• Post processing – Part of Dran-View 7. Compute harmonics and other parameters from the waveforms recorded by the instrument
Measured Parameters

(4) Differential Voltage: 512s/c, 16 bit resolution

• 0-1000Vrms, AC/DC, +/- 0.1% reading +/- 0.05% FS
• IEC 61000-4-30 Class A: 60-1000Vrms, ±0.1 % of Udin, range of 10% – 150% of Udin
• Transients – rms: 0-1414Vpk, ±0.2 % of Udin
• Transients – High Speed: 10-2000Vpk, +/- 10% of reading, +/- 0.5% FS

(4) Current: 512 s/c, 16 bit resolution

• Range (rms) probe dependent, AC/DC, +/- 0.1% reading +/- 0.05% FS
• Transients – Range probe dependent
• Transients – High Speed: Range probe dependent., 10% of Reading, +/- 0.5%FS

Frequency: 10 sec window

• 16-25Hz, 41-69Hz, +/- 0.01Hz

Calculated Parameters

Power/Energy – 1 Second sampling
Real Power (W) – P: meets 0.2S requirements, range probe dep.
Apparent Power (VA) – S: meets 0.2S requirements, range probe dep.
Reactive Power (var) – Q: meets 0.2S requirements, range probe dep.
Power Factor (W/VA) -”true” 1 to 0 to 1
Displacement PF -1 to 0 to +1
Demand (in W): meets 0.2S requirements, range probe dep.
Energy (in Wh): meets 0.2S requirements, range probe dep.

Distortion – 200ms, 3 sec, 10 min windows
Vthd: 0-100%, +/- 5% for V>=1% Vnom,
V Ind Harm: DC, 2-127, +/- 5% for V>=1% Vnom
Ithd: 0-100%, +/- 5% for V>=1% Vnom,
I Ind Harm: DC, 2-63, +/- 5% for V>=1% Vnom

Misc.
Pst – 10 minutes: 0.2-10, +/- 0.05 @ Pst=1 (50/60Hz only)
Plt – 2 hours: 0.2-10, +/- 0.05 @ Pst=1 (50/60Hz only)

Standards Compliance

Power Quality IEC 61000-4-30 Class A: Edition 2 (2008)
IEEE 1159: 2009

Power
IEEE 1459: 2000

Harmonics
IEC 61000-4-7 Class 1: Edition 2 (2008)

IEEE 519: 2014Voltage Flicker
IEC 61000-4-15: Edition 2 (2010)
IEEE 1453: 2011

Compliance/Testing
EN 50160: 2010

General Specifications

Dranetz HDPQ Xplorer SP (IP65)

• Size: (11″w x 6.5″h x 2.5″d), (27.9cm x 16.5cm x 6.4cm)
• Weight: 3.8lbs, 1.72kg
• Operating temperature: -10 to 50 deg C (14 to 122 deg F)
• Storage temperature: -40 to 85 deg C (-40 to 185 deg F)
• Humidity: 10-90% non condensing
• Power Supply: 90-600VAC/500VDC (50/60Hz). Powered by the phase being measured, or other source

Clock accuracy and resolution

• Internal: +/- 1 sec/day at 25 deg C
• NTP: +/-10 msec
• GPS: +/-1 msec

AC Adapter: 100-240Vac 50/60Hz
Battery capacity and charge time:

• Dranetz HDPQ Xplorer SP: 30 minutes run time on full charge, 3 hours charge time

Memory size: 4GB

Communications

Ethernet, 802.11 b/g/n Wireless (available without Wi-Fi as a special order)
USB On the Go
Bluetooth via USB adapter
VNC remote control
Android & Apple App

Ease of Use Features

Automatic Setups – Start monitoring in seconds!
Pre-programmed monitoring modes – Pre-configured setups for various applications
AnswerModules®– Sag/Dip directivity, PF Cap, Motor
Dashboards – Power Quality, Demand & Energy – Immediately know when events have been recorded
Simultaneous Power Quality, Demand & Energy monitoring
Mini-Report – Take screen snapshots that can be uploaded to your computer and included in reports, attached to emails, etc.Power the instrument from the circuit being measured, or another source (SP Only)
